主要功能
可測熒光誘導曲線并進行淬滅分析
可測光響應曲線和快速光曲線（RLC）
全部采用 LED 光源，全新觸摸屏設計
新增濕度測量功能，新增遠紅光源
儀器更加便攜，適合野外測量
可通過微光纖與光合儀（如 GFS-3000）聯用
采用5號電池供電，備用電池易獲得，適合長期野外使用
測量參數
Fo, Fm, F, Fm', Fo’, Fv/Fm, Y(II) 即 ΔF/Fm', qP, qL, qN, NPQ, Y(NPQ), Y(NO), rETR, PAR、葉溫和相對濕度等。
應用領域
研究光合作用機理、各種環境因子（光、溫、營養等）對植物生理生態的影響、植物抗逆性（干旱、冷、熱、UV、病毒、污染等）、植物的長期生態學變化等。
在植物生理學、植物生態學、植物病理學、農學、林學、園藝學、水生生物學、環境科學等領域有著廣泛應用。
主要技術參數
測量光：藍光 LED（470 nm）或紅光 LED（655nm），光強 0.05 μmol m-2 s-1。
光化光：藍光 LED（470 nm）或紅光 LED（655nm），最大連續光強 3000 μmol m-2 s-1。
飽和脈沖：藍光 LED（470 nm）或紅光 LED（655nm），最大閃光強度 6000 μmol m-2 s-1。
遠紅光：發射峰值 740 nm。
信號檢測：PIN-光電二極管，帶長通和短通濾光片，帶選擇性鎖相放大器。
數據存儲：8M 存儲卡，可存儲 27000 組數據。
葉夾：2035-B 葉夾包含 MINI-PAM/ F 光纖放置口和樣品夾。葉夾上下兩部分打開后可以夾住葉片。夾子上面部分提供了一個直徑為 1 厘米圓形測量面積。光纖尖端與測量區域之間的標準距離為 8 mm。光纖與測量平面呈 60° 角。葉片溫度傳感器安裝在測量區域下方。濕度傳感器安裝在距離測量區域 3cm 的位置。內置芯片保存?zhèn)鞲衅鞯男?zhǔn)數據。飽和脈沖可以通過遙控觸發按鈕被釋放。另外提供一個附加光傳感器輸入接口。PAR 測量范圍 0-7000 μmol m-2 s-1，葉片溫度測量范圍 -20 至 +60℃，濕度測量范圍 0-100％RH。
供電：6 節 AA（5 號 1.2 V/2 Ah）可充電電池，充電一次可供 1000 次飽和脈沖閃光。
選購指南

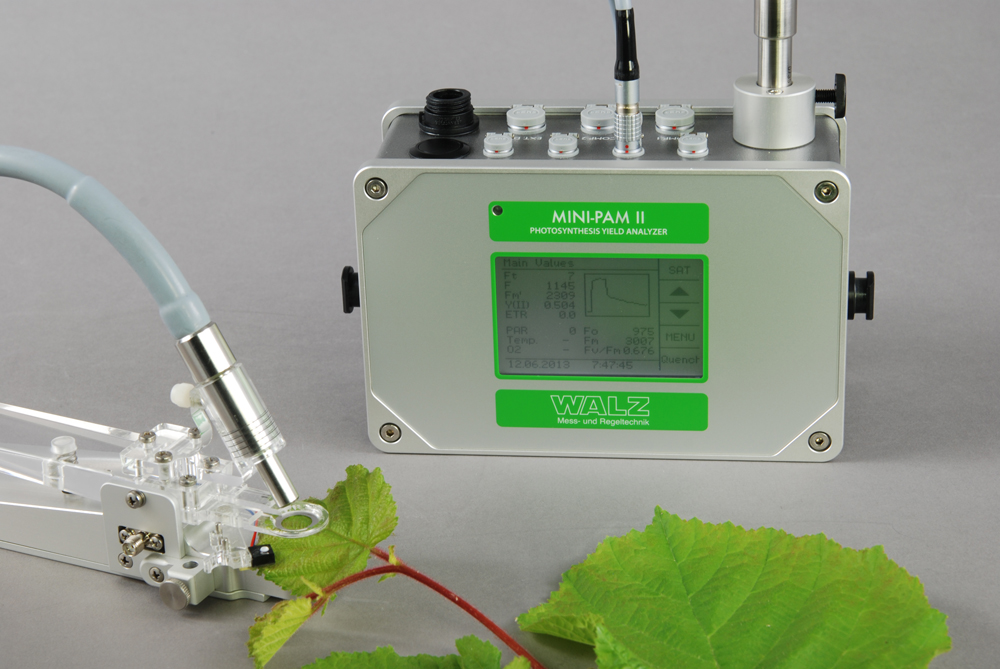

一、高等植物葉片測量基本款
系統組成：主機，光纖，光適應葉夾，暗適應葉夾，軟件等
注意：高等植物葉片紅光版和藍光版（推薦）主機可選其一
 |
| 高等植物葉片測量基本款 |

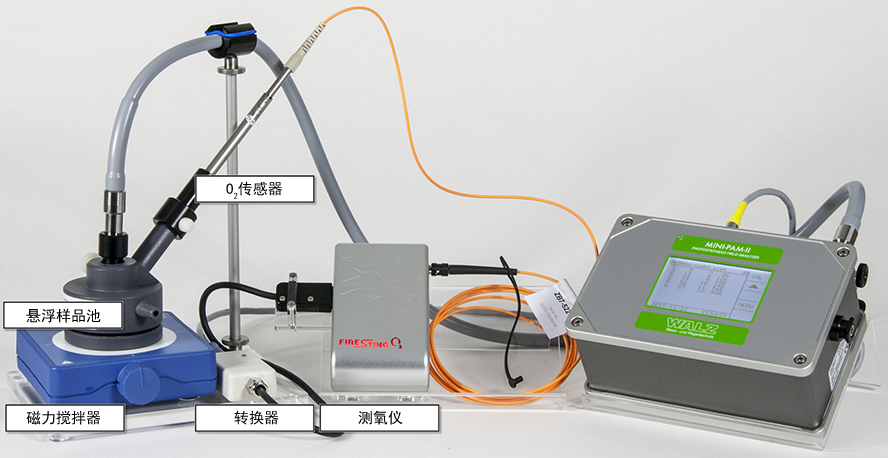

二、懸浮樣品測量基本款
系統組成：主機，光纖，懸浮樣品室，磁力攪拌器，光纖測氧儀（選配），軟件等
注意：藻類測量時，建議選擇紅光版主機
 |
| 懸浮樣品測量基本款 |
 |  |  |

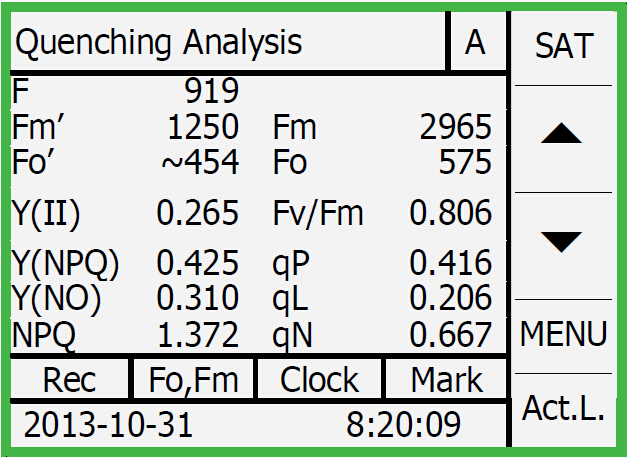

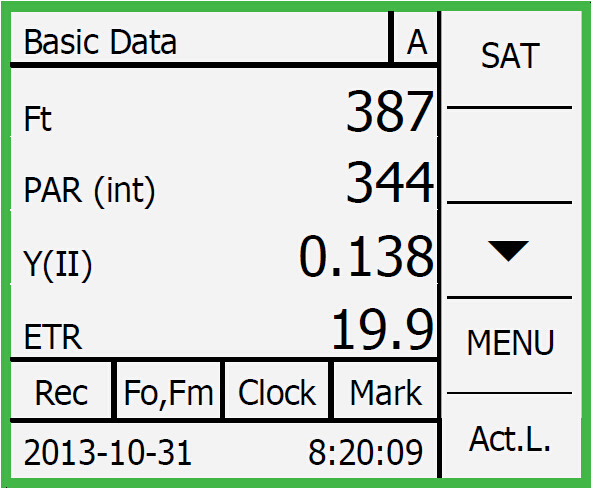

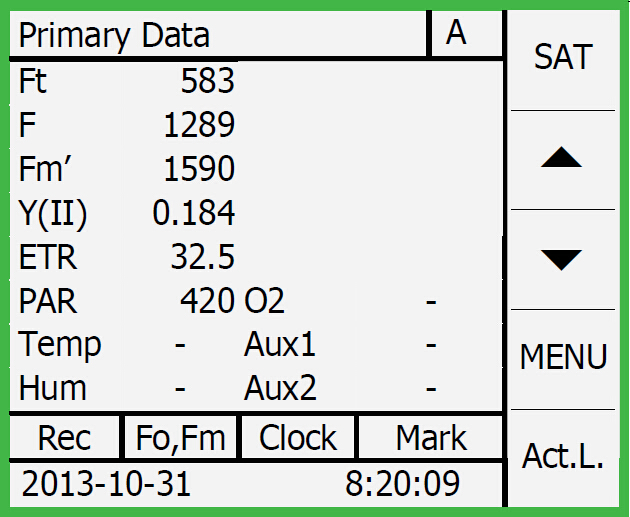

| 初始界面 | 基本測量結果顯示界面 | 詳細參數顯示界面 |
 |  |  |

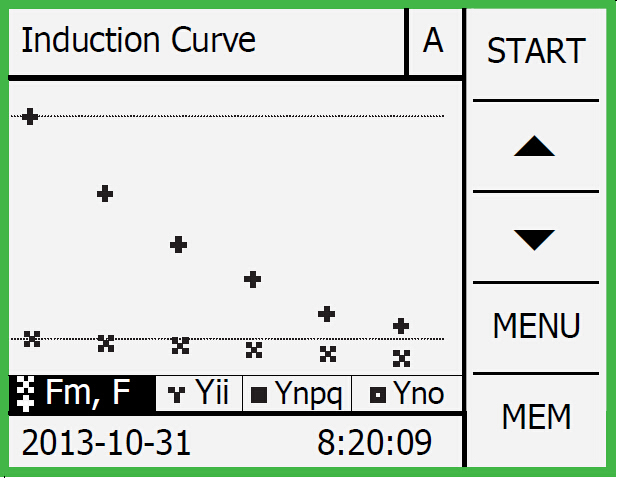

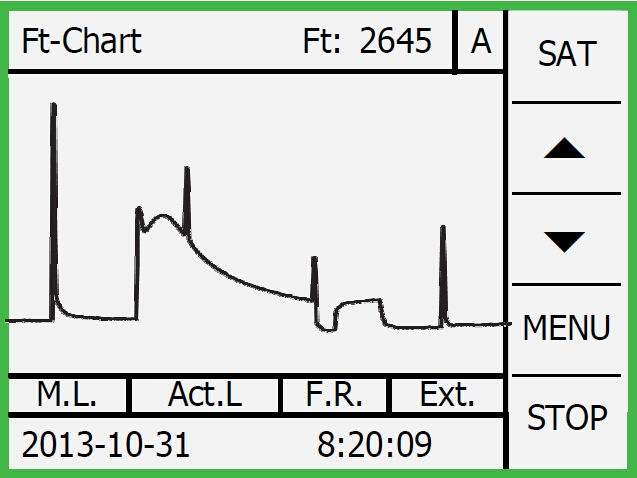

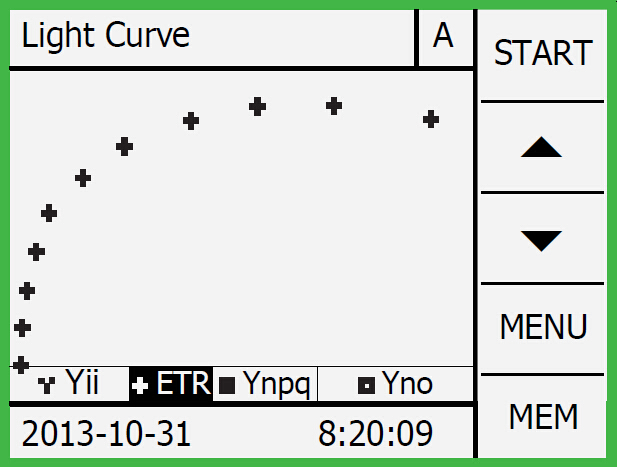

| 實時熒光顯示界面 | 慢速誘導動力學曲線界面 | 快速光曲線顯示界面 |
三、其他可選附件

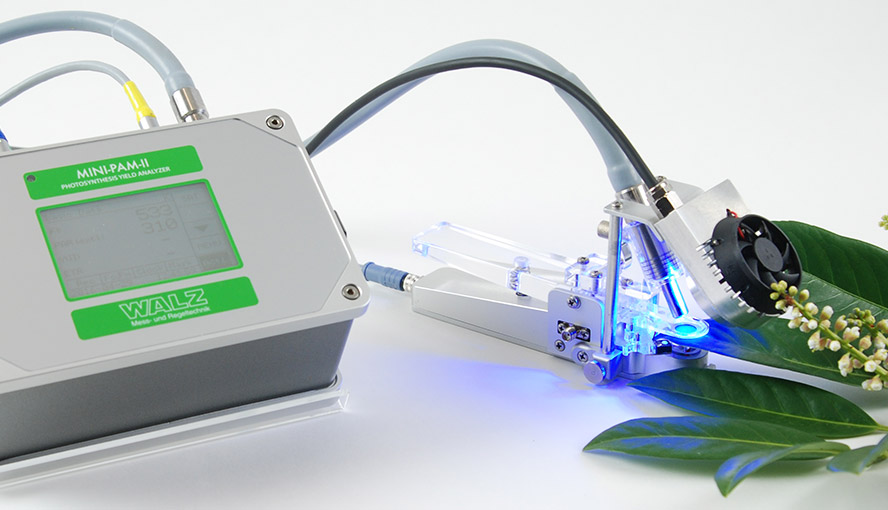

外置 LED 光源：2054-L。
可以連接到 2035-B 葉夾上提供外置光化光，紅綠藍白 4 色，最大激發波長分別為 630 nm 紅光, 520 nm 綠光, 452 nm 藍光和波長范圍 450nm-680nm 的白光。每種波長的光標準最大光強為 1500μmol m-2 s-1 連接外部供電裝置情況下，整體最大光強可達 6000μmol m-2 s-1 顏色組合可以自由選擇。
90 度角光纖適配器：2030-B90 。
安裝在 2030-B 或 2060-B 上，使光纖與樣品成 90 度角。
微型光量子/溫度傳感器：2065-M。
測量 PAR 和溫度，可連接 MINI-PAM 后獨立使用，多與 2060-B 結合使用。

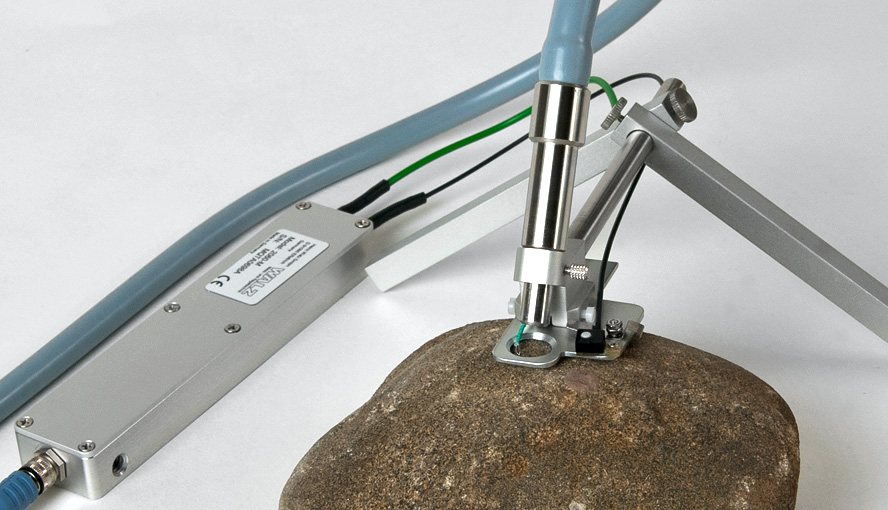

大樣品表面光纖固定支架：2060-A。
將光纖固定在較大樣品的表面（非葉片），與 2065-M 結合使用。

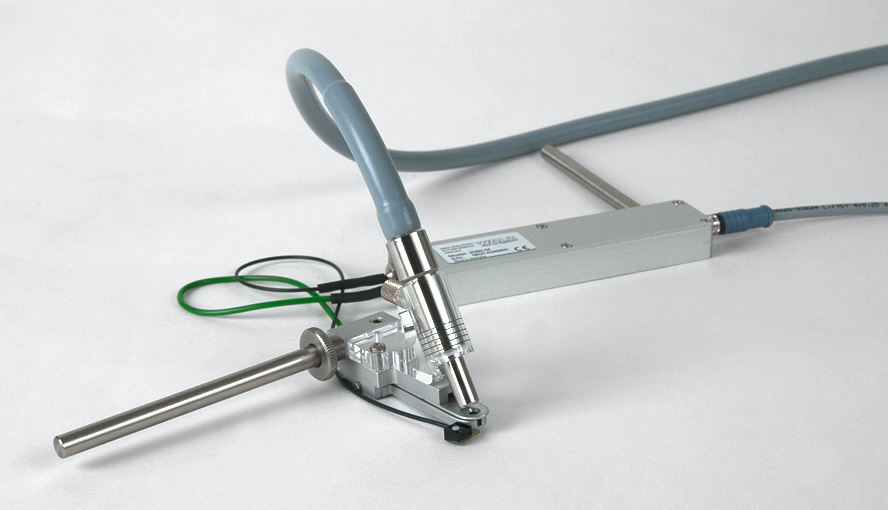

擬南芥葉夾：2060-B。
60 度角光適應葉夾，與獨立微型光量子/溫度傳感器 2060-M 連用進行測量，特別適于測量擬南芥類小葉片。需配置 2060-M。
微光纖：MINI-PAM/F1。
直徑 2 mm，長 1.5 m，用于測量小樣品。包括連接到 2035-B 的適配器。
應用示例
 |  |  |
產地：德國WALZ
參考文獻
數據來源：光合作用文獻 Endnote 數據庫，更新至 2021 年 1 月，文獻數量超過 10000 篇
原始數據來源：Google Scholar
注：MINI-PAM-II 為 MINI-PAM 新升級產品，更多文獻可參考 MINI-PAM 文獻目錄
